Week 2: ToolsĀ¶
Class memoĀ¶
In this week, I learned about the following tools for datascience.
- NumPiācalculation
- ScyPiāalgorithm
- Numbaācompiler for Python(more faster calculation)
- JAXāopptimize computer resource
- PyTorchālibrary for Machine Leaning(ML)
- metaplotāvisualization
- pandasāhanding the data
Assignment: "Visualize your data set(s)"Ā¶
In previous week, I picked up a data about "IoT sensor data took in Factory". I want to know the any insight from the data. In this week, I will try to visualize this data. I uploaded this data in the datasets folder on Jupyter notebook.
InĀ [1]:
import pandas as pd
InĀ [2]:
#import datasets
df = pd.read_csv('datasets/factory_sensor_simulator_2040.csv')
print(df)
Machine_ID Machine_Type Installation_Year Operational_Hours \
0 MC_000000 Mixer 2027 81769
1 MC_000001 Industrial_Chiller 2032 74966
2 MC_000002 Pick_and_Place 2003 94006
3 MC_000003 Vision_System 2007 76637
4 MC_000004 Shuttle_System 2016 20870
... ... ... ... ...
499995 MC_499995 Vacuum_Packer 2011 14425
499996 MC_499996 Conveyor_Belt 2003 75501
499997 MC_499997 CMM 2039 19855
499998 MC_499998 Dryer 2035 86823
499999 MC_499999 Industrial_Chiller 2021 52505
Temperature_C Vibration_mms Sound_dB Oil_Level_pct \
0 73.43 12.78 83.72 36.76
1 58.32 14.99 77.04 100.00
2 49.63 23.78 69.08 42.96
3 63.73 12.38 85.58 94.90
4 42.77 4.42 96.72 47.56
... ... ... ... ...
499995 65.42 16.50 81.95 59.21
499996 44.83 12.88 64.94 73.69
499997 37.26 11.46 70.70 70.70
499998 67.72 16.76 77.45 97.00
499999 46.01 8.94 67.88 51.11
Coolant_Level_pct Power_Consumption_kW ... Failure_History_Count \
0 68.74 84.95 ... 5
1 62.13 154.61 ... 2
2 35.96 51.90 ... 1
3 48.94 75.61 ... 1
4 53.78 224.93 ... 2
... ... ... ... ...
499995 73.67 255.87 ... 3
499996 29.25 198.37 ... 1
499997 49.04 156.59 ... 2
499998 15.40 132.33 ... 2
499999 31.90 138.69 ... 1
AI_Supervision Error_Codes_Last_30_Days Remaining_Useful_Life_days \
0 True 3 162.0
1 True 4 147.0
2 True 6 0.0
3 False 4 161.0
4 False 1 765.0
... ... ... ...
499995 False 0 820.0
499996 False 4 34.0
499997 False 4 815.0
499998 True 0 99.0
499999 False 4 489.0
Failure_Within_7_Days Laser_Intensity Hydraulic_Pressure_bar \
0 False NaN NaN
1 False NaN NaN
2 True NaN NaN
3 False NaN NaN
4 False NaN NaN
... ... ... ...
499995 False NaN NaN
499996 False NaN NaN
499997 False NaN NaN
499998 False NaN NaN
499999 False NaN NaN
Coolant_Flow_L_min Heat_Index AI_Override_Events
0 NaN NaN 2
1 40.92 NaN 2
2 NaN NaN 2
3 NaN NaN 0
4 NaN NaN 0
... ... ... ...
499995 NaN NaN 0
499996 NaN NaN 0
499997 NaN NaN 0
499998 NaN NaN 2
499999 41.09 NaN 0
[500000 rows x 22 columns]
As a first step, I could import all of csv data into pandas. But I don't know what should I do next.

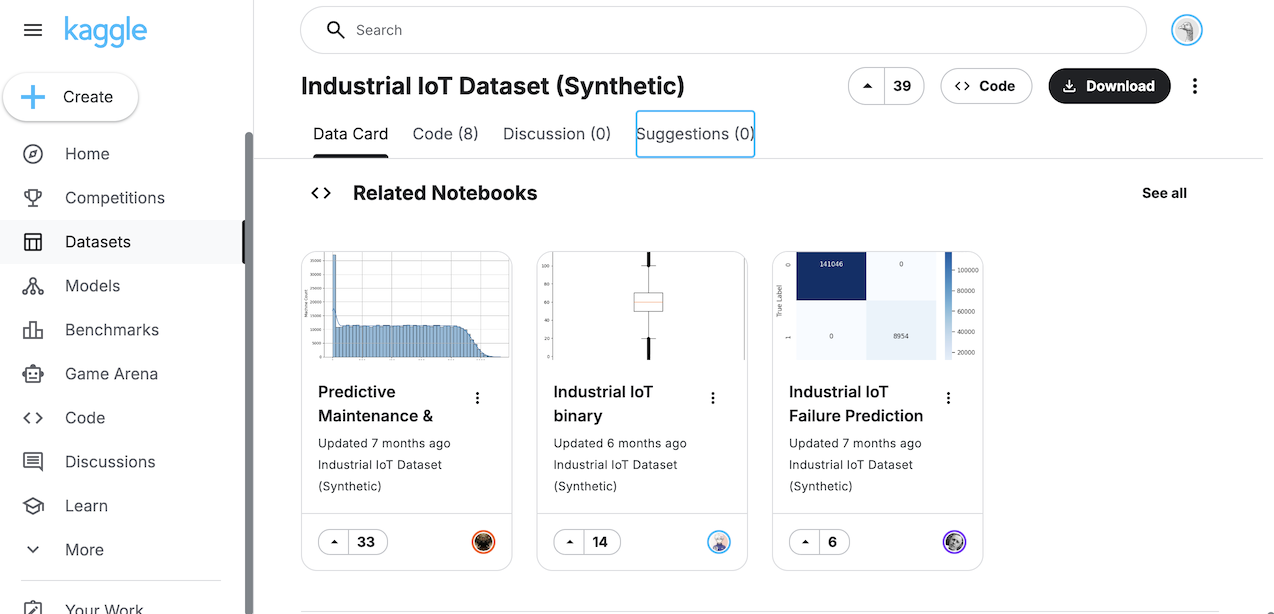

Then I found a notebook that relate to this data on Kaggle web page.
InĀ [3]:
# Import libraries
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
import numpy as np
#from sklearn.ensemble import RandomForestClassifier, RandomForestRegressor
#from sklearn.model_selection import train_test_split
#from sklearn.metrics import classification_report, confusion_matrix, accuracy_score, mean_squared_error, r2_score
#from sklearn.impute import SimpleImputer
#from sklearn.decomposition import PCA
#from sklearn.cluster import KMeans
#import shap
#import lightgbm as lgb
#import xgboost as xgb
#import warnings
#warnings.filterwarnings("ignore")
InĀ [4]:
import os
print(os.listdir("datasets"))
['olympic_athlete_events.csv', 'factory_sensor_simulator_2040.csv', 'olympic_noc_regions.csv', '.gitignore']
InĀ [5]:
# Load data
df = pd.read_csv("datasets/factory_sensor_simulator_2040.csv")
InĀ [6]:
# Basic overview
print("\n--- Dataset Overview ---")
print(df.shape)
print(df.dtypes)
print(df.head())
--- Dataset Overview --- (500000, 22) Machine_ID object Machine_Type object Installation_Year int64 Operational_Hours int64 Temperature_C float64 Vibration_mms float64 Sound_dB float64 Oil_Level_pct float64 Coolant_Level_pct float64 Power_Consumption_kW float64 Last_Maintenance_Days_Ago int64 Maintenance_History_Count int64 Failure_History_Count int64 AI_Supervision bool Error_Codes_Last_30_Days int64 Remaining_Useful_Life_days float64 Failure_Within_7_Days bool Laser_Intensity float64 Hydraulic_Pressure_bar float64 Coolant_Flow_L_min float64 Heat_Index float64 AI_Override_Events int64 dtype: object Machine_ID Machine_Type Installation_Year Operational_Hours \ 0 MC_000000 Mixer 2027 81769 1 MC_000001 Industrial_Chiller 2032 74966 2 MC_000002 Pick_and_Place 2003 94006 3 MC_000003 Vision_System 2007 76637 4 MC_000004 Shuttle_System 2016 20870 Temperature_C Vibration_mms Sound_dB Oil_Level_pct Coolant_Level_pct \ 0 73.43 12.78 83.72 36.76 68.74 1 58.32 14.99 77.04 100.00 62.13 2 49.63 23.78 69.08 42.96 35.96 3 63.73 12.38 85.58 94.90 48.94 4 42.77 4.42 96.72 47.56 53.78 Power_Consumption_kW ... Failure_History_Count AI_Supervision \ 0 84.95 ... 5 True 1 154.61 ... 2 True 2 51.90 ... 1 True 3 75.61 ... 1 False 4 224.93 ... 2 False Error_Codes_Last_30_Days Remaining_Useful_Life_days \ 0 3 162.0 1 4 147.0 2 6 0.0 3 4 161.0 4 1 765.0 Failure_Within_7_Days Laser_Intensity Hydraulic_Pressure_bar \ 0 False NaN NaN 1 False NaN NaN 2 True NaN NaN 3 False NaN NaN 4 False NaN NaN Coolant_Flow_L_min Heat_Index AI_Override_Events 0 NaN NaN 2 1 40.92 NaN 2 2 NaN NaN 2 3 NaN NaN 0 4 NaN NaN 0 [5 rows x 22 columns]
InĀ [7]:
# Null values
print("\n--- Null Value Count ---")
print(df.isnull().sum().sort_values(ascending=False))
--- Null Value Count --- Laser_Intensity 484844 Hydraulic_Pressure_bar 469660 Heat_Index 454786 Coolant_Flow_L_min 454376 Machine_ID 0 Machine_Type 0 Failure_Within_7_Days 0 Remaining_Useful_Life_days 0 Error_Codes_Last_30_Days 0 AI_Supervision 0 Failure_History_Count 0 Maintenance_History_Count 0 Last_Maintenance_Days_Ago 0 Power_Consumption_kW 0 Coolant_Level_pct 0 Oil_Level_pct 0 Sound_dB 0 Vibration_mms 0 Temperature_C 0 Operational_Hours 0 Installation_Year 0 AI_Override_Events 0 dtype: int64
InĀ [10]:
# Target distribution
plt.figure(figsize=(8, 5))
sns.histplot(df["Remaining_Useful_Life_days"], bins=50, kde=True)
plt.title("Remaining Useful Life (RUL) Distribution")
plt.xlabel("Days")
plt.ylabel("Machine Count")
plt.grid(True)
plt.tight_layout()
plt.show()
InĀ [Ā ]:
