Session 7 - Packaging & Board Design¶
Summary¶
- Packaging protects the die and provides connectivity
- Wirebonding connects die pads to package pins
- Eval boards provide power, clock, and I/O access
- FPGAs let you prototype before silicon arrives
- Testing verifies your chip works in silicon
- Debug requires planning and systematic approach
Homework¶
- Run final DRC/LVS on your design
- Document your chip: functionality, pin assignments, and interface details (e.g., timing parameters, frequencies, baud rates)
- Develop a verification test plan
- Prepare your presentation for Thursday!
—¶
Assignment 01¶
- Run final DRC/LVS on your design
Run DRC¶
I ran DRC by following command
/foss/tools/klayout/klayout \
-m drc_report.xml \
c_note_generator_output.gds
I got resutl.
# check number of viorations
grep -c "item" drc_report.xml
# check the detail of viorations
grep -A2 "description" drc_report.xml
This is the report of DRC.
Result of this command is bellow.
/foss/examples/take_project > grep -c "item" drc_report.xml
2
/foss/examples/take_project > grep -A2 "description" drc_report.xml
<description>SKY130 DRC runset</description>
<original-file/>
<generator>drc: script='/foss/pdks/ciel/sky130/versions/54435919abffb937387ec956209f9cf5fd2dfbee/sky130A/libs.tech/klayout/drc/sky130A_mr.drc'</generator>
/foss/examples/take_project >
It don’t have any vioration for DRC!
Run LVS¶
extract spice netlist¶
cat << 'EOF' > extract_spice.script
drc off
gds read /foss/pdks/ciel/sky130/versions/54435919abffb937387ec956209f9cf5fd2dfbee/sky130A/libs.ref/sky130_fd_sc_hd/gds/sky130_fd_sc_hd.gds
lef read /foss/pdks/ciel/sky130/versions/54435919abffb937387ec956209f9cf5fd2dfbee/sky130A/libs.ref/sky130_fd_sc_hd/techlef/sky130_fd_sc_hd__nom.tlef
lef read /foss/pdks/ciel/sky130/versions/54435919abffb937387ec956209f9cf5fd2dfbee/sky130A/libs.ref/sky130_fd_sc_hd/lef/sky130_fd_sc_hd.lef
def read c_note_generator_output.def
extract all
ext2spice hierarchy on
ext2spice format ngspice
ext2spice -o c_note_generator_layout.spice
quit
EOF
magic -noconsole -dnull -rcfile /foss/pdks/ciel/sky130/versions/54435919abffb937387ec956209f9cf5fd2dfbee/sky130A/libs.tech/magic/sky130A.magicrc < extract_spice.script
Run LVS with Netgen¶
netgen -batch lvs \
"c_note_generator_layout.spice top" \
"c_note_generator_output.v top" \
/foss/pdks/ciel/sky130/versions/54435919abffb937387ec956209f9cf5fd2dfbee/sky130A/libs.tech/netgen/sky130A_setup.tcl \
lvs_report.txt
Then I got the result of LVS.
It is saying.
Circuit 1 contains 78 devices, Circuit 2 contains 69 devices. *** MISMATCH ***
Circuit 1 contains 115 nets, Circuit 2 contains 348 nets. *** MISMATCH ***
It don`t match the number.
I asked to Cloude about this result. It said it because of extra capacitor was created by Magic when it extracted capacitance.
Second issue is that number of nets don’t match. I looked into what caused the issue, but I couldn’t quite figure out why there was a difference in the number of wires.
Assignment 02¶
-
Document your chip: functionality, pin assignments, and interface details (e.g., timing parameters, frequencies, baud rates)
- Voltage Standardss : 1.8V
-

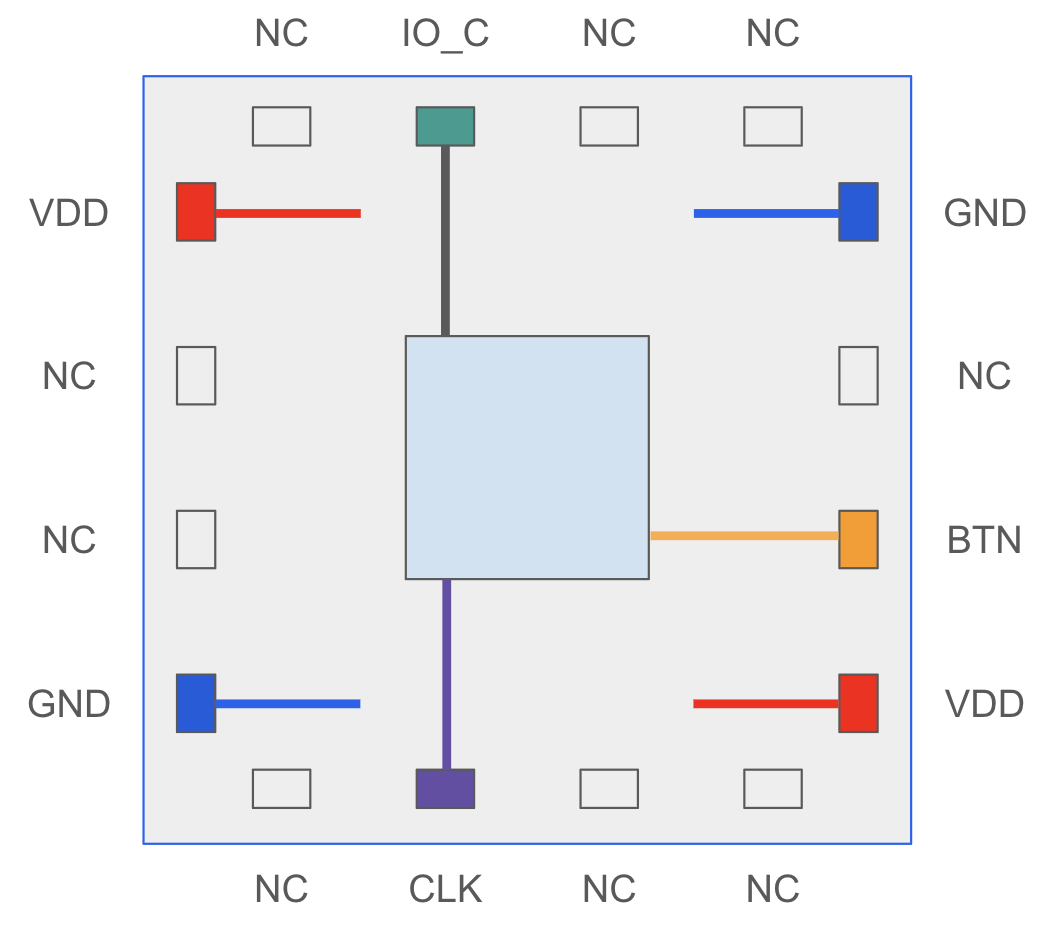

pin assignments
-
interface detail
- CLK frequency : 10MHz
-
Package type : QFN
