Session #5: RTL Design and Design and Verification¶
Homework¶
-
Write Verilog for your project’s core module (aim for 10-30 lines to start)
-
Integrate with any provided library modules (e.g., debounce, UART, PWM) — create a top-level wrapper
-
Simulate with a testbench and examine waveforms in GTKWave
-
Run linter (verilator –lint-only) and fix and warnings
Write Verilog¶
For my project I am designing a button to trigger a PWM signal. I read a button/switch casues an unpredictable bounce in the signal on the circuits, therefore a design strategy uses what is called a ‘debounce’ circuit. I am going to write “debounce” circuit.

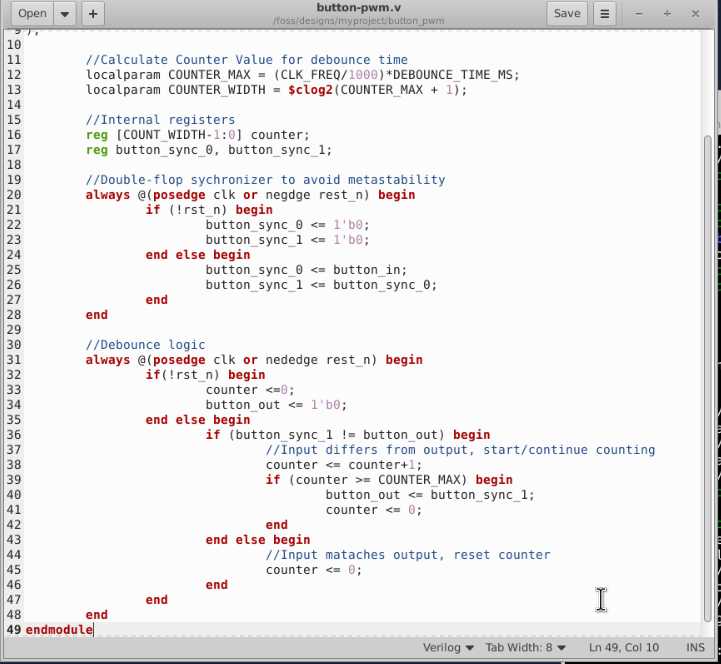

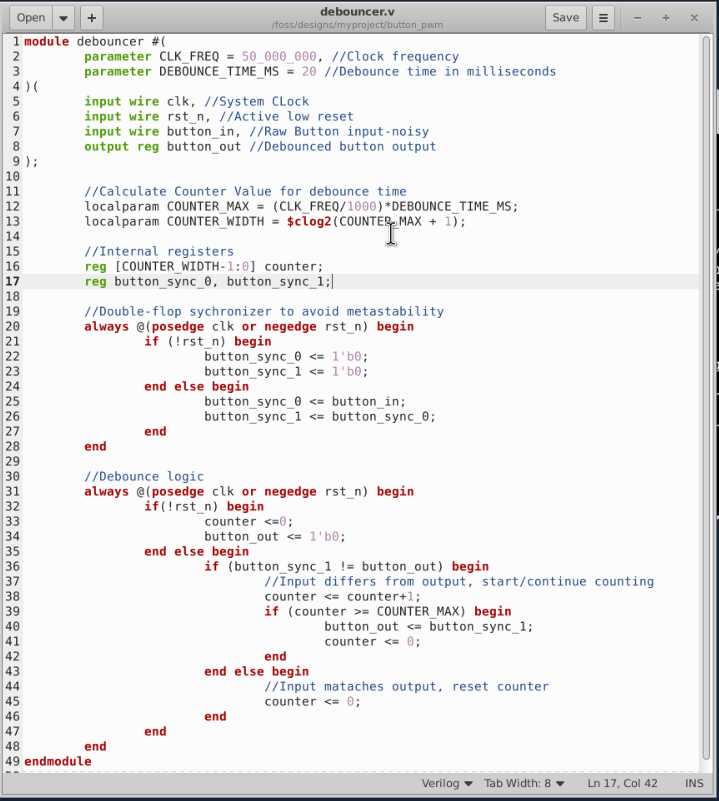

First try with the help of #3 resource.

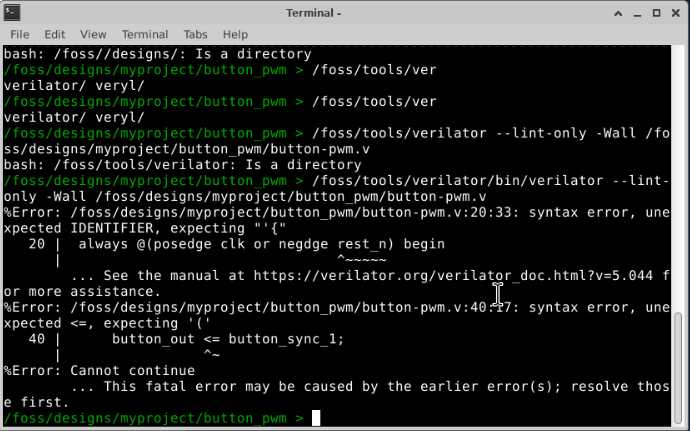

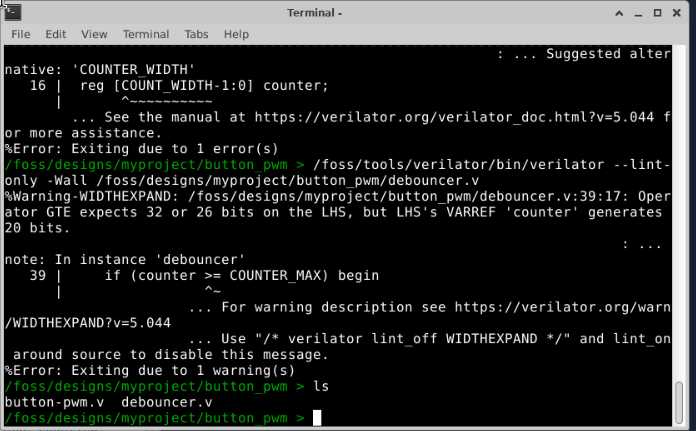

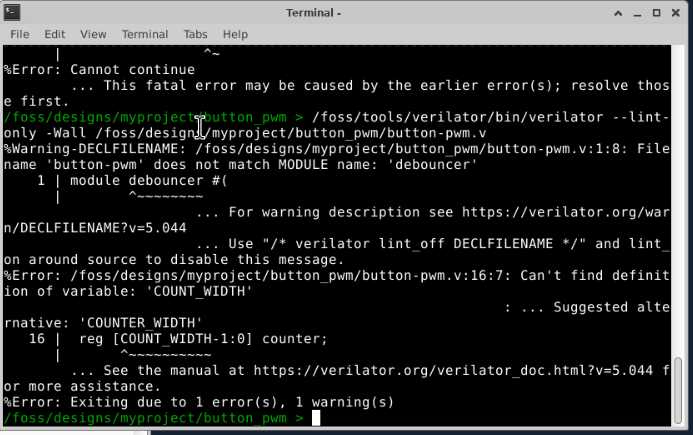

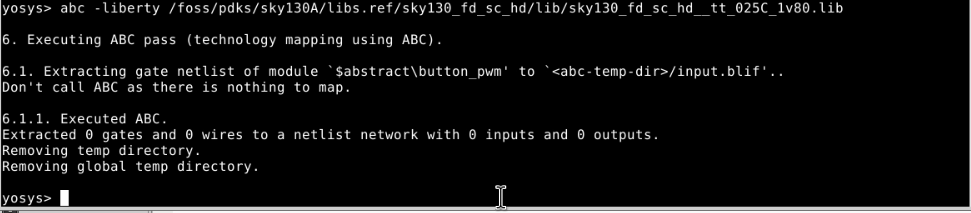

Unsuccessful
Unsuccessful Again
Yet again, working through the faults.

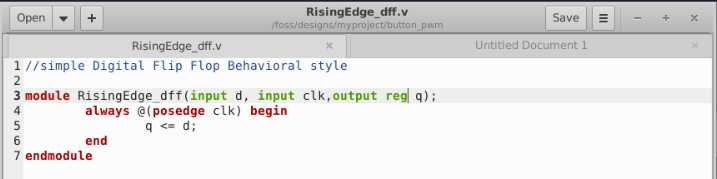

OK, After this. I am going to try a simplier program first. Since I know the debouncer has two flip flop gates I am writing a flip flop below.

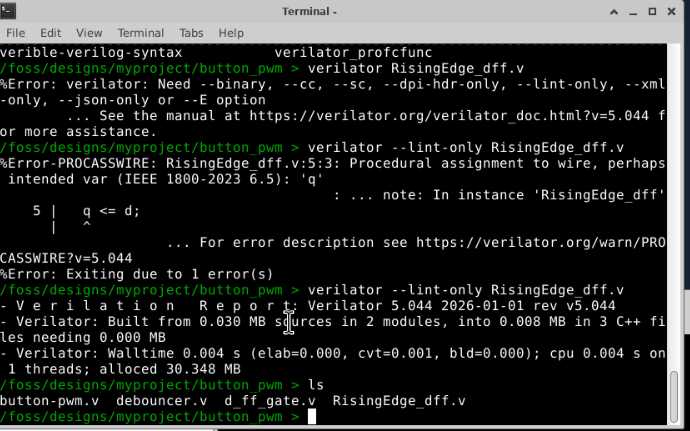

Final got something to work, somewhat. Need to figure out what to do from here.
Code for a d flip flop Behavioral style
// D Flip-Flop Module
module dff (
input wire clk, // Clock input
input wire reset, // Asynchronous reset
input wire d, // Data input
output reg q // Data output
);
// Always block triggered on the rising edge of the clock or reset
always @(posedge clk or posedge reset) begin
if (reset) begin
q <= 1'b0; // Reset output to 0
end
else begin
q <= d; // Capture data input on rising edge of clock
end
end
endmodule
// Testbench for D Flip-Flop
module tb_dff;
// Testbench signals
reg clk, reset, d;
wire q;
// Instantiate the D Flip-Flop module
dff uut (
.clk(clk),
.reset(reset),
.d(d),
.q(q)
);
// Clock generation
always #5 clk = ~clk; // Clock period of 10 time units
// Test scenarios
initial begin
clk = 0;
reset = 1;
d = 0;
#10; // Wait for 10 time units
// Release reset and apply test vectors
reset = 0;
d = 1; #10; // Check output when D is 1
d = 0; #10; // Check output when D is 0
d = 1; #10; // Check output when D is 1 again
// Apply reset again
reset = 1; #10; // Output should be reset to 0
reset = 0; // Release reset
d = 1; #10; // Final check
// End of simulation
$finish;
end
// Dump signals for waveform analysis
initial begin
$dumpfile("dump.vcd");
$dumpvars(1);
end
endmodule
Commands
verilator --lint-only -Wall <i>name</i>.v
The verilator builds and check the file
iverilog -o <i>name-executable-file</i> <i>name.v</i> <i>name_tb.v</i>
name-executable-file is the instantiation of the veriolg file and the textbench data name.v is the verilog file name_tb.v is the testbench file that goes iwth the verilogfile
vvp <i>name-executable-file</i>
gtkwave dump.vcd

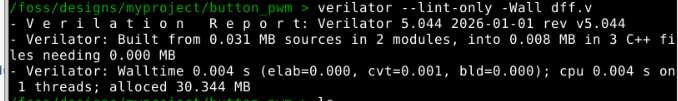

Success on this example
Next, run the test bench Test ran, compiled and I was able to view, however, I need to go back and look. In the wave viewer I cannot move the cycle around.
I thought that I could look at the vcd file and I was correct. I saw the unit of time was every 10 second which was out of the range of the gktwave. So I adjusted some of the settings in the wave and wola it worked. Now with this new found skill and confidence on to writing in gate style. I don’t like black boxes until I have some understanding.
ok, learned something cool
Learned Something Cool
wire and_gate_output; // “and_gate_output” is a wire that only outputs
reg d_flip_flop_output; // “d_flip_flop_output” is a register; it stores and outputs a value
reg [7:0] address_bus; // “address_bus” is a little-endian 8-bit register
Layed out the gates for a D Flip flop to get a handle on the flow of data at the lowest abstraction layer.
Labeled the gates
Some errors!
Some more errors!
Tried this!!
One of the same errors: circular q which I understand the reason, I just don’t know how to fix it.
ALright here is what I found thank you ChatGPT for help, the code is not a dflipflop it is a latch. THanks interent. Well chalk it up to learning. Now map the d flip flop schematically then write it in verilog.
I found this schematic online, however, I may run into the same problem above due to the right most nand gates.
In Verilog, “circular logic” typically refers to a combinational feedback loop where a signal’s value depends on itself within the same clock cycle. These loops are generally considered bad practice in synthesizable code and should be avoided because they can lead to unpredictable behavior, oscillation, and difficulty with synthesis and timing closure. - Gemni
Ok, next try! Now all I see in d flip flops are combinational feedback loops
Let’s attempt this.

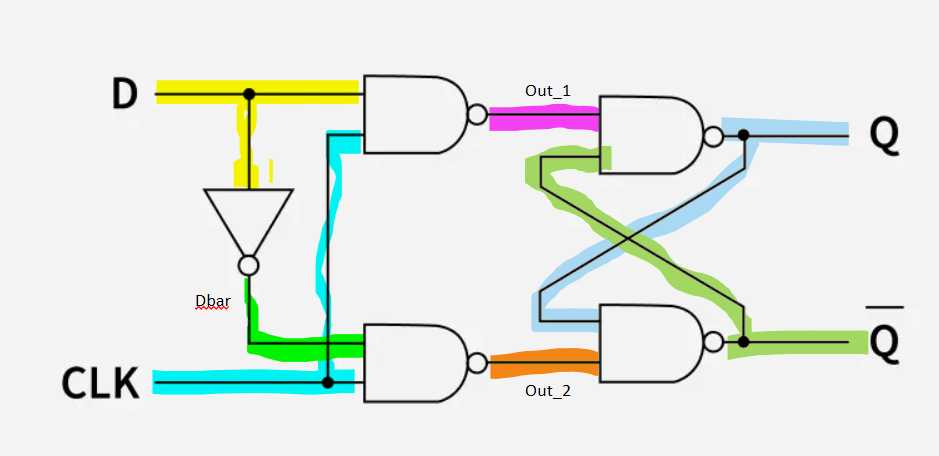

Colored and labeled the schematic, this helps a lot.
ChatGPT
Verilator calls it “circular combinational logic” because it’s doing lint and doesn’t assume you intended a latch.
In hardware, that pair of NANDs is a latch core (state-holding element), not a combinational block.
I gave up with the dff using NAND gates for now due to the circular logic. Frustrating but need to move on.
I completed a counter example using some code from #9 and #10. With some work I was able to create a vcd file and see the waves. It felt good and I am closer to getting my project done. The below code does not work.
This is where the code begins
Counter
//Work through tutorial using the behavior abstration layer
//work through a different text bench
module counter( clk, //clock input rst, // active high, synchronous Reset input enable, //Active high enable signal for counter counter_out //4 bit vector output of the counter );
//input ports
input wire clk;
input wire rst;
input wire enable;
//output ports
output[3:0] counter_out; //register 4 bit
//output data type
reg[3:0] counter_out;
//Code starts here
//Since the counter is positive edge trigged one, we trigger the below block with respect to positive edge of the clock
always @(posedge clk)
begin: COUNTER //Block Name
//at every rising edge of clock we check if reset is active
//if active, we load the counter output with "0000"
if(rst ==1'b1) begin
counter_out <=#1 4'b000;
end
//if enable is active the we increment the counter
else if (enable ==1'b1) begin
counter_out <=#1 counter_out+1;
end
end
endmodule
I had to modify both of the codes since there was some error and the test bench did not execute adump file, it was designed for something other than verilog.
“Counter Test Bench
module counter_tb(); //declare inputs as regs and outputs as wires reg clk, rst, enable; wire [3:0] counter_out; //
//Initialize all variables initial begin clk = 1; rst = 0; enable = 0; #5 rst = 1; //Assert the reset #5 rst = 0; //De-assert the reset #5 enable =1; //Assert enable #100 enable = 0; //De-assert enable #10 $finish; //Terminate simulation end
//Clock generator always begin #5 clk = ~clk; //toggle clock every 5 ticks end //connect DUT to test bench counter U_counter(clk,rst,enable,counter_out);
//added this
initial begin
//create simulated output
$dumpfile(“dump.vcd”); //
$dumpvars(1);
end
endmodule
I finally got the counter to work:

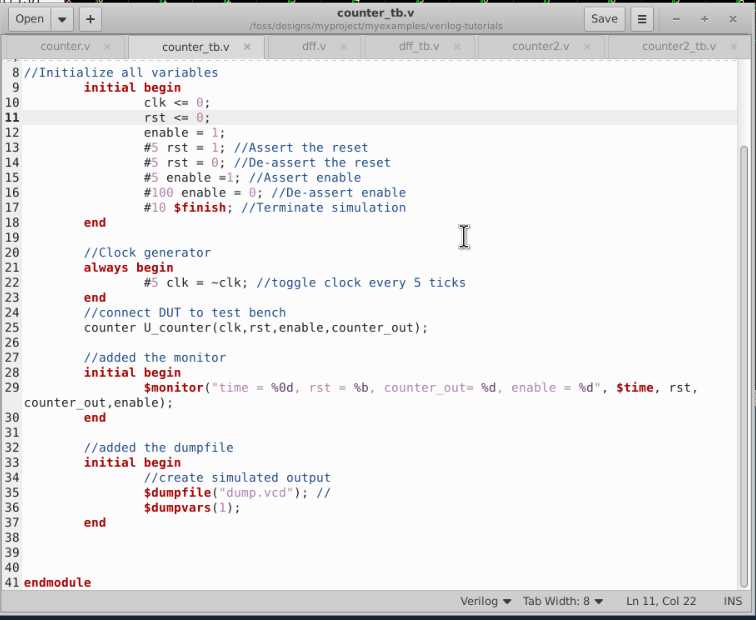

Working Counter and Test Bench
Integrate¶
Simulate¶

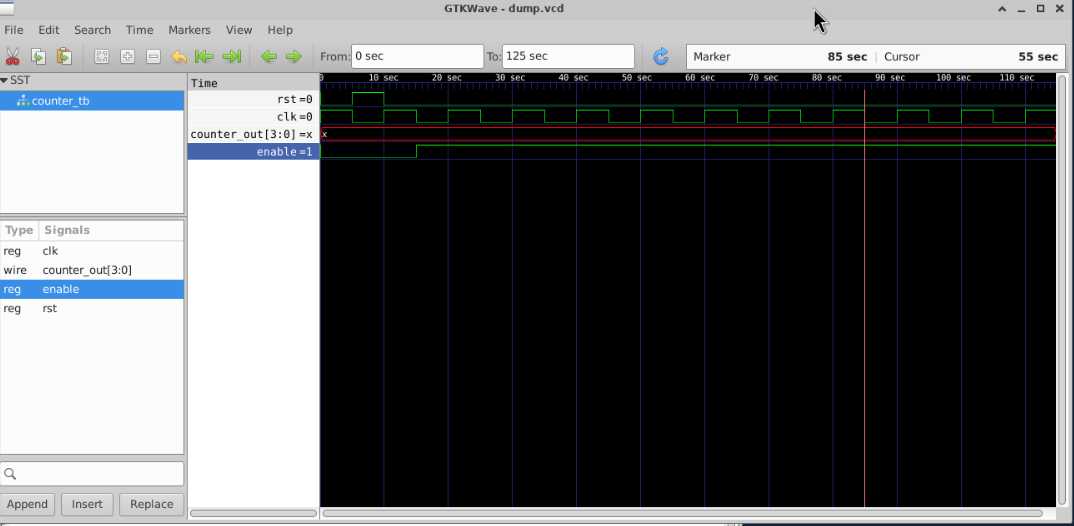

Simluation for the counter example. Now looking at it, I don’t know if it is correct. - rst looks good - clk looks good - enable looks good - not so sure about the counter

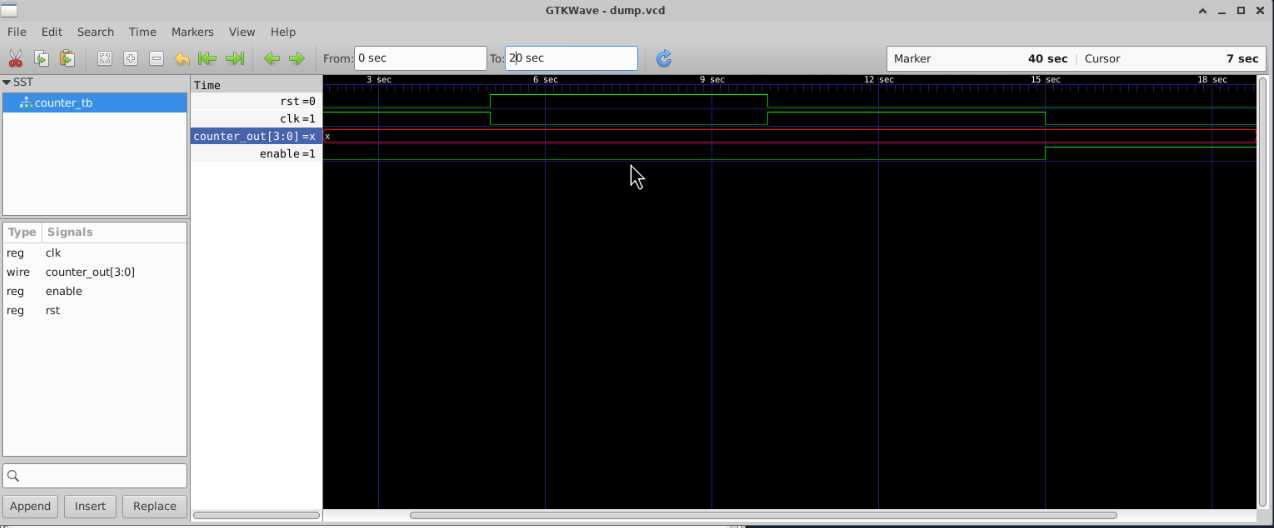

Zoomed up into the 0-20 second range the counter is not counting. Look’s Like a got to fix it.

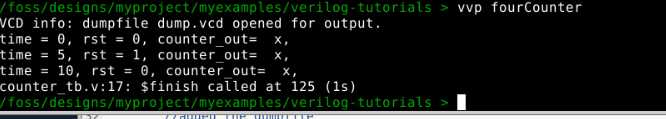

Added this code to display the variables.
The counter_out is not counting.

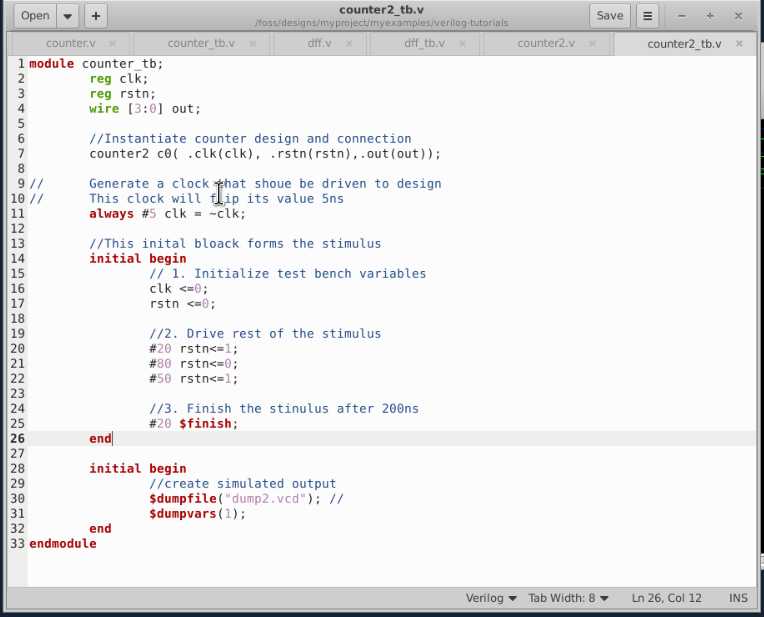

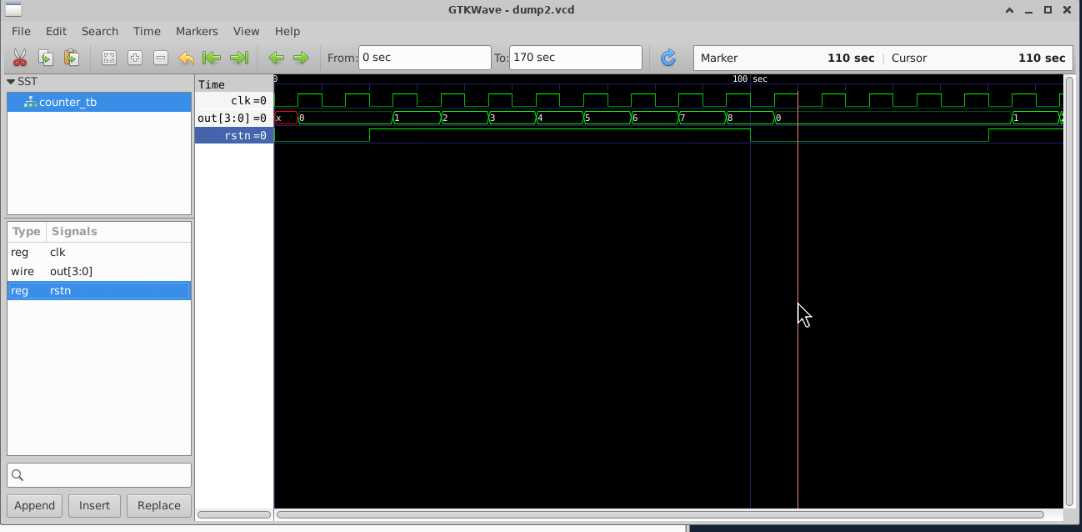

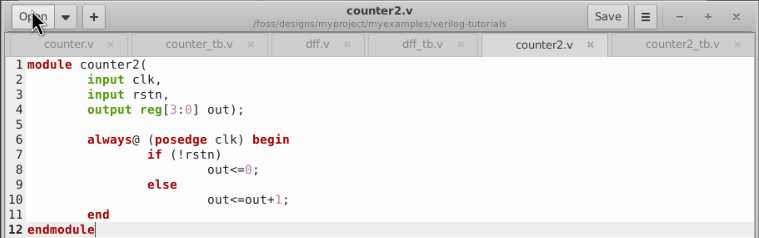

Ok, looked at another counter and counter test bed. It is becoming easier to read and write. Counter2 worked with a little.
I compared the two counters to start and peel back the layers of understanding.

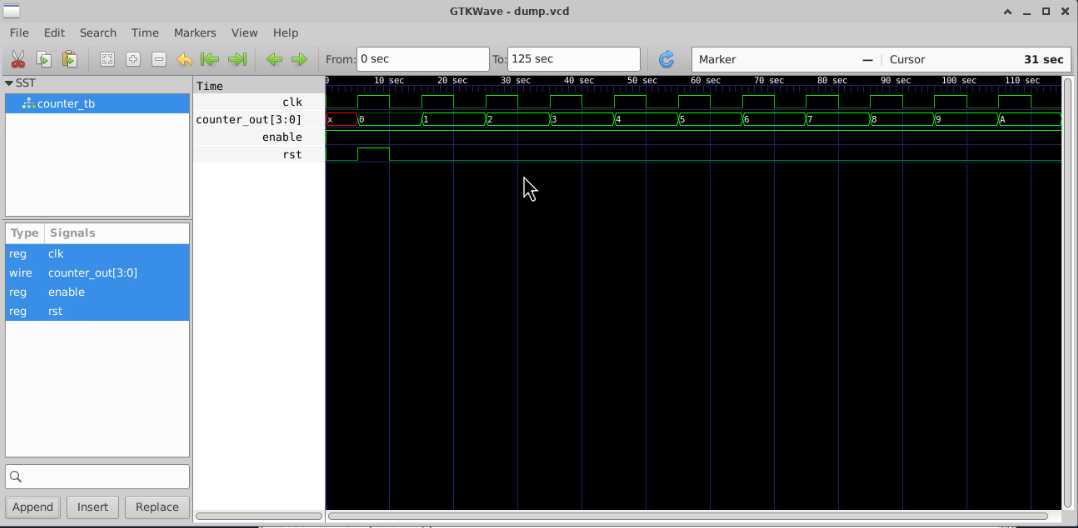

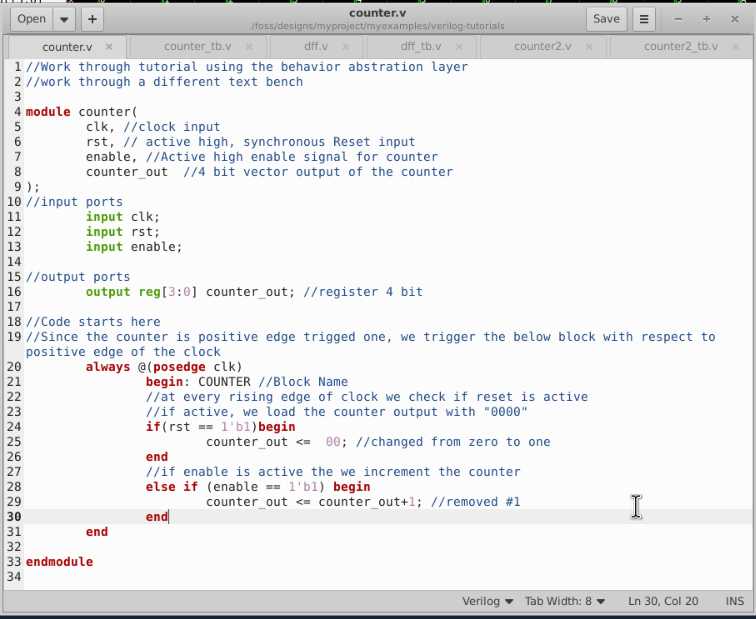

Heck ya! work through the first counter finally. It was couple of this that did not work with the tutorial and I fixed them. For some reason there was a #1 in front of the counter = counter +1 statement that was removed. Additionally, on the test bed I made I set the clk <= 0; rst <=0
Run Linter¶
Resources:¶
- https://www.fpga4student.com/2017/04/simple-debouncing-verilog-code-for.html
- https://www.youtube.com/watch?v=LO8ONR1TceI
- https://www.chipverify.com/verilog/verilog-debounce-circuit
- https://www.youtube.com/watch?v=YUB-OyGr1oA
- https://logicflick.com/how-to-write-verilog-code-for-a-d-flip-flop/
- https://www.asic-world.com/verilog/veritut.html
- https://electronics.stackexchange.com/questions/98591/please-explain-the-following-verilog-code-of-a-d-flip-flop
- https://technobyte.org/verilog-code-d-flip-flop-dataflow-gate-behavioral/
- Some
- some
