Netlisting, schematic capture, cell libraries

Week 2, Session 1 — Fab Futures

Jennifer Volk, Alexander Wynn, Andreas Olofsson

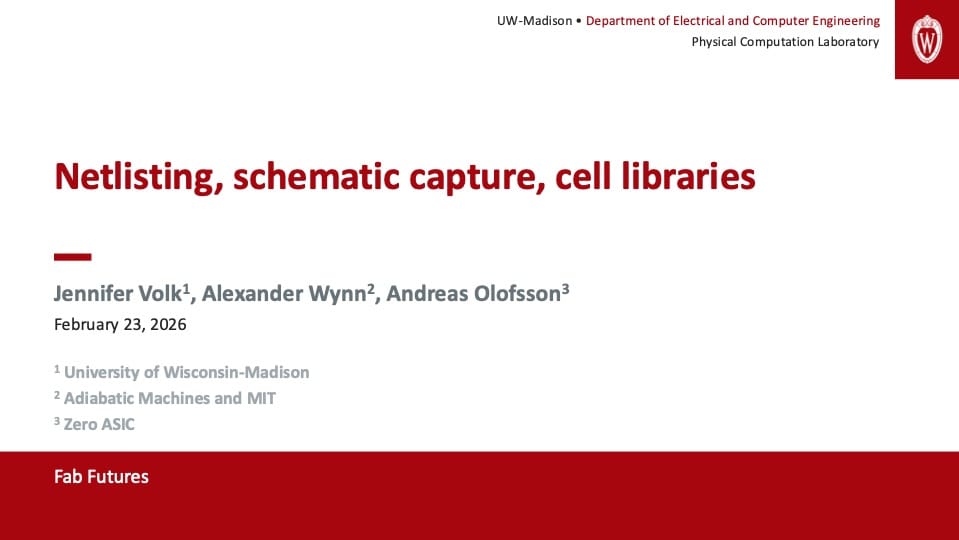

Jennifer Volk's class slides¶

You can download the class slides as a PDF from this link.

Contents¶

1. Schematic Capture Basics
2. SPICE Simulation
3. Running ngspice
4. Analysis Types
5. Libraries and PDKs
6. Behavioral Modeling
7. Simulation Tips
8. Homework

In [1]:

# Setup
import matplotlib.pyplot as plt
import matplotlib.patches as patches
from matplotlib.patches import FancyBboxPatch, Circle, Rectangle
import numpy as np

print("Setup complete.")

# Setup import matplotlib.pyplot as plt import matplotlib.patches as patches from matplotlib.patches import FancyBboxPatch, Circle, Rectangle import numpy as np print("Setup complete.")

Setup complete.

---

1. Schematic Capture Basics¶

---

What is a Schematic?¶

A schematic is a graphical representation of a circuit using symbols for components and lines for wires.

Schematic Capture Tools¶

Tool	Type	Notes
Xschem	Open source	Integrates with ngspice
KiCad	Open source	Great for PCB design too
Cadence Virtuoso	Commercial	Industry standard for IC

Basic Schematic Elements¶

Element	Symbol	Purpose
Wire	Line	Electrical connection
Net label	Text	Names a wire (same name = connected)
Instance	Symbol	A component (resistor, transistor, etc.)
Port	I/O marker	Input/output of the circuit
Ground	GND symbol	Reference voltage (0V)

In [2]:

# Simple schematic: Inverter
fig, ax = plt.subplots(figsize=(10, 8))

# VDD rail
ax.plot([5, 5], [7, 6.5], 'k-', linewidth=2)
ax.plot([4.5, 5.5], [7, 7], 'k-', linewidth=3)
ax.text(5, 7.3, 'VDD', ha='center', fontsize=11, fontweight='bold')

# PMOS (circle on gate)
ax.add_patch(Rectangle((4, 5), 2, 1.5, fill=False, edgecolor='blue', linewidth=2))
ax.text(5, 5.75, 'PMOS', ha='center', va='center', fontsize=10, color='blue')
ax.add_patch(Circle((3.8, 5.75), 0.15, fill=False, edgecolor='blue', linewidth=2))

# PMOS connections
ax.plot([5, 5], [6.5, 6.5], 'k-', linewidth=2)  # drain to VDD
ax.plot([5, 5], [5, 4], 'k-', linewidth=2)  # source to output
ax.plot([3.5, 3.65], [5.75, 5.75], 'k-', linewidth=2)  # gate

# NMOS
ax.add_patch(Rectangle((4, 2), 2, 1.5, fill=False, edgecolor='red', linewidth=2))
ax.text(5, 2.75, 'NMOS', ha='center', va='center', fontsize=10, color='red')

# NMOS connections
ax.plot([5, 5], [3.5, 4], 'k-', linewidth=2)  # drain to output
ax.plot([5, 5], [2, 1.5], 'k-', linewidth=2)  # source to GND
ax.plot([3.5, 4], [2.75, 2.75], 'k-', linewidth=2)  # gate

# Connect gates
ax.plot([3.5, 3.5], [2.75, 5.75], 'k-', linewidth=2)
ax.plot([1.5, 3.5], [4.25, 4.25], 'k-', linewidth=2)  # input
ax.plot([3.5, 3.5], [4.25, 4.25], 'ko', markersize=6)  # junction dot

# Output
ax.plot([5, 7], [4, 4], 'k-', linewidth=2)
ax.plot([5, 5], [4, 4], 'ko', markersize=6)  # junction dot

# GND symbol
ax.plot([5, 5], [1.5, 1.2], 'k-', linewidth=2)
ax.plot([4.5, 5.5], [1.2, 1.2], 'k-', linewidth=2)
ax.plot([4.65, 5.35], [1.0, 1.0], 'k-', linewidth=2)
ax.plot([4.8, 5.2], [0.8, 0.8], 'k-', linewidth=2)
ax.text(5, 0.4, 'GND', ha='center', fontsize=11)

# Labels
ax.text(1.2, 4.25, 'IN', fontsize=12, fontweight='bold', va='center')
ax.text(7.3, 4, 'OUT', fontsize=12, fontweight='bold', va='center')

# Input/output markers
ax.plot([1.5], [4.25], 'g>', markersize=12)
ax.plot([7], [4], 'r>', markersize=12)

ax.set_xlim(0, 9)
ax.set_ylim(0, 8)
ax.set_aspect('equal')
ax.set_title('CMOS Inverter Schematic', fontsize=14, fontweight='bold')
ax.axis('off')

plt.tight_layout()
plt.show()

# Simple schematic: Inverter fig, ax = plt.subplots(figsize=(10, 8)) # VDD rail ax.plot([5, 5], [7, 6.5], 'k-', linewidth=2) ax.plot([4.5, 5.5], [7, 7], 'k-', linewidth=3) ax.text(5, 7.3, 'VDD', ha='center', fontsize=11, fontweight='bold') # PMOS (circle on gate) ax.add_patch(Rectangle((4, 5), 2, 1.5, fill=False, edgecolor='blue', linewidth=2)) ax.text(5, 5.75, 'PMOS', ha='center', va='center', fontsize=10, color='blue') ax.add_patch(Circle((3.8, 5.75), 0.15, fill=False, edgecolor='blue', linewidth=2)) # PMOS connections ax.plot([5, 5], [6.5, 6.5], 'k-', linewidth=2) # drain to VDD ax.plot([5, 5], [5, 4], 'k-', linewidth=2) # source to output ax.plot([3.5, 3.65], [5.75, 5.75], 'k-', linewidth=2) # gate # NMOS ax.add_patch(Rectangle((4, 2), 2, 1.5, fill=False, edgecolor='red', linewidth=2)) ax.text(5, 2.75, 'NMOS', ha='center', va='center', fontsize=10, color='red') # NMOS connections ax.plot([5, 5], [3.5, 4], 'k-', linewidth=2) # drain to output ax.plot([5, 5], [2, 1.5], 'k-', linewidth=2) # source to GND ax.plot([3.5, 4], [2.75, 2.75], 'k-', linewidth=2) # gate # Connect gates ax.plot([3.5, 3.5], [2.75, 5.75], 'k-', linewidth=2) ax.plot([1.5, 3.5], [4.25, 4.25], 'k-', linewidth=2) # input ax.plot([3.5, 3.5], [4.25, 4.25], 'ko', markersize=6) # junction dot # Output ax.plot([5, 7], [4, 4], 'k-', linewidth=2) ax.plot([5, 5], [4, 4], 'ko', markersize=6) # junction dot # GND symbol ax.plot([5, 5], [1.5, 1.2], 'k-', linewidth=2) ax.plot([4.5, 5.5], [1.2, 1.2], 'k-', linewidth=2) ax.plot([4.65, 5.35], [1.0, 1.0], 'k-', linewidth=2) ax.plot([4.8, 5.2], [0.8, 0.8], 'k-', linewidth=2) ax.text(5, 0.4, 'GND', ha='center', fontsize=11) # Labels ax.text(1.2, 4.25, 'IN', fontsize=12, fontweight='bold', va='center') ax.text(7.3, 4, 'OUT', fontsize=12, fontweight='bold', va='center') # Input/output markers ax.plot([1.5], [4.25], 'g>', markersize=12) ax.plot([7], [4], 'r>', markersize=12) ax.set_xlim(0, 9) ax.set_ylim(0, 8) ax.set_aspect('equal') ax.set_title('CMOS Inverter Schematic', fontsize=14, fontweight='bold') ax.axis('off') plt.tight_layout() plt.show()

---

2. SPICE Simulation¶

---

What is SPICE?¶

SPICE (Simulation Program with Integrated Circuit Emphasis) is the industry standard for analog circuit simulation.

SPICE Netlist Format¶

* Inverter circuit
.include "sky130.lib"

* Power supply
Vdd vdd gnd 1.8

* Input signal (rise/fall times realistic for 130nm)
Vin in gnd PULSE(0 1.8 0 100p 100p 1n 2n)

* PMOS: drain gate source body
Mp out in vdd vdd sky130_fd_pr__pfet_01v8 W=1u L=150n

* NMOS: drain gate source body
Mn out in gnd gnd sky130_fd_pr__nfet_01v8 W=0.5u L=150n

* Simulation commands
.tran 10p 10n
.end

Netlist Elements¶

First Letter	Component
R	Resistor
C	Capacitor
L	Inductor
V	Voltage source
I	Current source
M	MOSFET
X	Subcircuit instance

---

3. Running ngspice¶

---

Hands-On: Simulating an Inverter¶

Let's walk through a complete simulation from netlist to waveform.

Step 1: Create the netlist file

Save this as inverter.spice:

* CMOS Inverter Simulation
* For Fab Futures - Week 2

* Include the Sky130 device models
.lib "sky130A/libs.tech/ngspice/sky130.lib.spice" tt

* Power supply: 1.8V
Vdd vdd gnd 1.8

* Input: pulse from 0V to 1.8V
* PULSE(initial final delay rise fall width period)
Vin in gnd PULSE(0 1.8 1n 100p 100p 2n 4n)

* PMOS transistor (W=1u, L=150n)
* Format: Mname drain gate source body model W=... L=...
Xp out in vdd vdd sky130_fd_pr__pfet_01v8 W=1u L=150n

* NMOS transistor (W=0.5u, L=150n)
Xn out in gnd gnd sky130_fd_pr__nfet_01v8 W=0.5u L=150n

* Output load capacitor (typical gate load)
Cload out gnd 10f

* Simulation: transient analysis, 10ps step, 20ns duration
.tran 10p 20n

* Save node voltages for plotting
.save v(in) v(out)

* Control block for ngspice
.control
run
plot v(in) v(out)
meas tran tpd_hl TRIG v(in) VAL=0.9 RISE=1 TARG v(out) VAL=0.9 FALL=1
meas tran tpd_lh TRIG v(in) VAL=0.9 FALL=1 TARG v(out) VAL=0.9 RISE=1
.endc

.end

Step 2: Run the simulation

# Run ngspice in batch mode
ngspice -b inverter.spice

# Or run interactively
ngspice inverter.spice

Step 3: Understand the output

Successful simulation output looks like:

Circuit: * cmos inverter simulation

Doing analysis at TEMP = 27.000000 and target temp = 27.000000

Initial Transient Solution
--------------------------
Node                                   Voltage
----                                   -------
vdd                                        1.8
in                                           0
out                                    1.79998

...

tpd_hl                  =  2.34567e-11  targ=  3.234e-09   trig=  3.000e-09
tpd_lh                  =  3.12345e-11  targ=  5.312e-09   trig=  5.000e-09

The .meas statements give you propagation delays:

• tpd_hl: High-to-low delay (~23 ps in this example)
• tpd_lh: Low-to-high delay (~31 ps)

Common ngspice Error Messages¶

Error	Meaning	Fix
model xxx not found	Missing PDK library	Check .lib path
singular matrix	Floating node or short	Check connections
timestep too small	Convergence failure	Try .option reltol=1e-3
node xxx is floating	Unconnected node	Add connection or resistor
out of region	Transistor bias issue	Check power supplies

Interactive Commands¶

When running ngspice interactively:

ngspice 1 -> source inverter.spice    # Load the netlist
ngspice 1 -> run                       # Run simulation
ngspice 1 -> plot v(in) v(out)        # Plot waveforms
ngspice 1 -> print v(out)             # Print values
ngspice 1 -> wrdata output.csv v(out) # Export data
ngspice 1 -> quit                      # Exit

Saving Results¶

Export to CSV for external plotting:

.control
run
wrdata results.csv v(in) v(out)
.endc

Then in Python:

import numpy as np
import matplotlib.pyplot as plt

data = np.loadtxt('results.csv')
time = data[:, 0]
v_out = data[:, 2]  # Column 0=time, 1=v(in), 2=v(out)
plt.plot(time * 1e9, v_out)
plt.xlabel('Time (ns)')
plt.ylabel('Vout (V)')

---

4. Analysis Types¶

---

Common SPICE Analyses¶

Analysis	Command	Purpose
DC	.dc	Sweep DC voltage/current, find operating point
AC	.ac	Frequency response (gain, phase)
Transient	.tran	Time-domain response
Operating Point	.op	DC node voltages and currents

In [3]:

# Demonstrate different analysis types
fig, axes = plt.subplots(2, 2, figsize=(12, 10))

# DC Sweep (inverter transfer curve)
ax = axes[0, 0]
vin = np.linspace(0, 1.8, 100)
vout = 1.8 / (1 + np.exp(10 * (vin - 0.9)))
ax.plot(vin, vout, 'b-', linewidth=2)
ax.set_xlabel('Vin (V)')
ax.set_ylabel('Vout (V)')
ax.set_title('.dc Analysis: Inverter Transfer Curve', fontsize=11)
ax.grid(True, alpha=0.3)
ax.set_xlim(0, 1.8)
ax.set_ylim(0, 1.8)

# Transient (pulse response)
ax = axes[0, 1]
t = np.linspace(0, 10, 1000)
vin = 0.9 + 0.9 * np.sign(np.sin(2 * np.pi * t / 4))
# Simulate RC delay
vout = np.zeros_like(t)
tau = 0.15
for i in range(1, len(t)):
    target = 0 if vin[i] > 0.9 else 1.8
    dt = t[i] - t[i-1]
    vout[i] = vout[i-1] + (target - vout[i-1]) * (1 - np.exp(-dt/tau))
ax.plot(t, vin, 'b-', linewidth=2, label='Vin')
ax.plot(t, vout, 'r-', linewidth=2, label='Vout')
ax.set_xlabel('Time (ns)')
ax.set_ylabel('Voltage (V)')
ax.set_title('.tran Analysis: Pulse Response', fontsize=11)
ax.legend()
ax.grid(True, alpha=0.3)

# AC Analysis (Bode plot)
ax = axes[1, 0]
freq = np.logspace(3, 10, 100)  # 1kHz to 10GHz
# Simple single-pole response
f_3db = 1e8  # 100 MHz bandwidth
gain_db = 20 - 20 * np.log10(np.sqrt(1 + (freq/f_3db)**2))
ax.semilogx(freq, gain_db, 'b-', linewidth=2)
ax.axhline(y=17, color='r', linestyle='--', alpha=0.5, label='-3dB point')
ax.axvline(x=f_3db, color='r', linestyle='--', alpha=0.5)
ax.set_xlabel('Frequency (Hz)')
ax.set_ylabel('Gain (dB)')
ax.set_title('.ac Analysis: Frequency Response', fontsize=11)
ax.grid(True, alpha=0.3, which='both')
ax.set_ylim(-20, 25)

# Operating Point
ax = axes[1, 1]
ax.text(0.5, 0.8, 'Operating Point (.op)', ha='center', fontsize=14, fontweight='bold',
        transform=ax.transAxes)
op_text = """
Node Voltages:
  V(vdd)  = 1.800 V
  V(in)   = 0.900 V
  V(out)  = 0.892 V

Device Currents:
  I(Mp)   = -15.2 µA
  I(Mn)   =  15.2 µA
"""
ax.text(0.5, 0.5, op_text, ha='center', va='center', fontsize=11,
        family='monospace', transform=ax.transAxes,
        bbox=dict(boxstyle='round', facecolor='lightyellow', edgecolor='gray'))
ax.axis('off')

plt.tight_layout()
plt.show()

# Demonstrate different analysis types fig, axes = plt.subplots(2, 2, figsize=(12, 10)) # DC Sweep (inverter transfer curve) ax = axes[0, 0] vin = np.linspace(0, 1.8, 100) vout = 1.8 / (1 + np.exp(10 * (vin - 0.9))) ax.plot(vin, vout, 'b-', linewidth=2) ax.set_xlabel('Vin (V)') ax.set_ylabel('Vout (V)') ax.set_title('.dc Analysis: Inverter Transfer Curve', fontsize=11) ax.grid(True, alpha=0.3) ax.set_xlim(0, 1.8) ax.set_ylim(0, 1.8) # Transient (pulse response) ax = axes[0, 1] t = np.linspace(0, 10, 1000) vin = 0.9 + 0.9 * np.sign(np.sin(2 * np.pi * t / 4)) # Simulate RC delay vout = np.zeros_like(t) tau = 0.15 for i in range(1, len(t)): target = 0 if vin[i] > 0.9 else 1.8 dt = t[i] - t[i-1] vout[i] = vout[i-1] + (target - vout[i-1]) * (1 - np.exp(-dt/tau)) ax.plot(t, vin, 'b-', linewidth=2, label='Vin') ax.plot(t, vout, 'r-', linewidth=2, label='Vout') ax.set_xlabel('Time (ns)') ax.set_ylabel('Voltage (V)') ax.set_title('.tran Analysis: Pulse Response', fontsize=11) ax.legend() ax.grid(True, alpha=0.3) # AC Analysis (Bode plot) ax = axes[1, 0] freq = np.logspace(3, 10, 100) # 1kHz to 10GHz # Simple single-pole response f_3db = 1e8 # 100 MHz bandwidth gain_db = 20 - 20 * np.log10(np.sqrt(1 + (freq/f_3db)**2)) ax.semilogx(freq, gain_db, 'b-', linewidth=2) ax.axhline(y=17, color='r', linestyle='--', alpha=0.5, label='-3dB point') ax.axvline(x=f_3db, color='r', linestyle='--', alpha=0.5) ax.set_xlabel('Frequency (Hz)') ax.set_ylabel('Gain (dB)') ax.set_title('.ac Analysis: Frequency Response', fontsize=11) ax.grid(True, alpha=0.3, which='both') ax.set_ylim(-20, 25) # Operating Point ax = axes[1, 1] ax.text(0.5, 0.8, 'Operating Point (.op)', ha='center', fontsize=14, fontweight='bold', transform=ax.transAxes) op_text = """ Node Voltages: V(vdd) = 1.800 V V(in) = 0.900 V V(out) = 0.892 V Device Currents: I(Mp) = -15.2 µA I(Mn) = 15.2 µA """ ax.text(0.5, 0.5, op_text, ha='center', va='center', fontsize=11, family='monospace', transform=ax.transAxes, bbox=dict(boxstyle='round', facecolor='lightyellow', edgecolor='gray')) ax.axis('off') plt.tight_layout() plt.show()

---

5. Libraries and PDKs¶

---

PDK Device Libraries¶

A PDK provides SPICE models for all available devices:

SkyWater 130nm examples:

Device	SPICE Model Name	Description
1.8V NFET	sky130_fd_pr__nfet_01v8	Standard NMOS
1.8V PFET	sky130_fd_pr__pfet_01v8	Standard PMOS
3.3V NFET	sky130_fd_pr__nfet_03v3_nvt	I/O transistor
Poly resistor	sky130_fd_pr__res_high_po	High-R poly
MIM capacitor	sky130_fd_pr__cap_mim_m3_1	Metal capacitor

Corner Models¶

Manufacturing varies! We simulate at multiple corners:

Corner	NMOS	PMOS	Meaning
TT	Typical	Typical	Nominal process
FF	Fast	Fast	Best-case speed
SS	Slow	Slow	Worst-case speed
SF	Slow	Fast	Skewed
FS	Fast	Slow	Skewed

Corner Simulation Example¶

To run simulations at multiple corners, modify your netlist:

* Multi-corner simulation
* Run the same circuit at TT, FF, and SS corners

.param corner_select = 0

.if (corner_select == 0)
.lib "sky130A/libs.tech/ngspice/sky130.lib.spice" tt
.elseif (corner_select == 1)
.lib "sky130A/libs.tech/ngspice/sky130.lib.spice" ff
.elseif (corner_select == 2)
.lib "sky130A/libs.tech/ngspice/sky130.lib.spice" ss
.endif

* ... rest of your circuit ...

Or run multiple simulations with a script:

#!/bin/bash
# run_corners.sh - Simulate at all process corners

for corner in tt ff ss sf fs; do
    echo "=== Simulating corner: $corner ==="
    sed "s/\.lib.*sky130.lib.spice.*/\.lib \"sky130A\/libs.tech\/ngspice\/sky130.lib.spice\" $corner/" \
        inverter.spice > inverter_${corner}.spice
    ngspice -b inverter_${corner}.spice > results_${corner}.log 2>&1
    grep "tpd" results_${corner}.log
done

Expected corner behavior:

Corner	Delay	Power	Notes
TT	Nominal	Nominal	Design target
FF	Fastest	Highest	Best-case timing, worst-case power
SS	Slowest	Lowest	Worst-case timing
SF/FS	Mixed	Mixed	Check for skew-related issues

Rule: Your design must meet timing at SS corner (slow-slow) and not exceed power budget at FF corner (fast-fast).

---

6. Behavioral Modeling¶

---

When to Use Behavioral Models¶

Sometimes you don't need transistor-level detail:

• Early design exploration - get quick answers
• Mixed-signal simulation - analog blocks with digital
• Complex functions - ADCs, PLLs, etc.

Verilog-A Example¶

// Ideal voltage-controlled switch
module vcswitch(p, n, ctrl);
    inout p, n;
    input ctrl;
    electrical p, n, ctrl;

    parameter real ron = 1;      // On resistance
    parameter real roff = 1e9;   // Off resistance
    parameter real vth = 0.5;    // Threshold

    analog begin
        if (V(ctrl) > vth)
            I(p, n) <+ V(p, n) / ron;
        else
            I(p, n) <+ V(p, n) / roff;
    end
endmodule

---

7. Simulation Tips¶

---

Common Issues and Solutions¶

Problem	Cause	Solution
Convergence failure	Bad initial conditions	Add .nodeset or .ic
Slow simulation	Too many points	Increase step size
Oscillation	Positive feedback	Check connections
Wrong DC point	Floating nodes	Add weak pullup/pulldown

Simulation Checklist¶

• Include correct PDK library
• Set appropriate simulation time/frequency range
• Use realistic input waveforms
• Add load capacitance on outputs
• Check multiple process corners
• Verify power consumption

---

Summary¶

• Schematic capture is the first step in circuit design
• SPICE simulates circuit behavior with detailed models
• Analysis types: DC, AC, Transient, Operating Point
• PDK libraries provide calibrated device models
• Corner simulation ensures robustness across process variation

Homework¶

1. Reuse and.sp netlist, which has a 2-input AND gate to make a 2-input NAND gate (e.g., remove the output inverter) and change the models to refer to the PDK models
2. Simulate it in SPICE, verify truth table (it will look something like the right table), and measure propagation delays (low-to-high and high-to-low)
3. Write an initial analog block that you can use in your chip project (e.g., an adder, counter, etc.)
   • Here’s a good starting point: https://analoghub.ie/category/verilogModels/article/counter
