Learning Objectives

  1. Write synthesizable Verilog for digital circuits (combinational and sequential logic, state machines)
  2. Simulate and verify designs using testbenches and waveform analysis
  3. Use open-source EDA tools (Yosys, OpenROAD, Magic) to take RTL to layout
  4. Understand the chip development pipeline from specification through fabrication
  5. Read and apply PDK design rules for a real manufacturing process (Sky130)
  6. Prepare a design for tapeout on an educational shuttle (Tiny Tapeout or similar) You’ll complete hands-on projects that could actually be fabricated on silicon.

Project Overview

// ============================================================================
// LED Color Buzzer Morse Beacon - Kyunghee Yoo - Microelectronics 2026
// hello_morse.v -Lint - I added Buzzer function and change the message.
// ============================================================================
//
// HOW IT WORKS:
//   1. Chip drives a strip of WS2812 (NeoPixel) LEDs
//   2. All LEDs flash together to send Morse code
//   3. Press button to change colors
//   4. Beep when LEDs are flashing (during dots and dashes)
//
// WHAT YOU'LL LEARN:
//   - Precise timing for serial protocols (WS2812)
//   - State machines for sequencing
//   - Encoding data (ASCII to Morse)
//   - Tone PWM generator
//   - Buzzer Control Logic (BUZZER_FREQ = 600)
//
// MORSE CODE TIMING:
//   - Dot  = 1 unit
//   - Dash = 3 units
//   - Gap between dots/dashes = 1 unit
//   - Gap between letters = 3 units
//   - Gap between words = 7 units
//
// ABOUT WS2812 LEDs:
//   These "smart" LEDs have a built-in chip. You send color data one bit
//   at a time using precise pulse widths:
//
//   Sending a '0' bit:        Sending a '1' bit:
//   0.4µs HIGH, 0.8µs LOW     0.8µs HIGH, 0.4µs LOW
//
//   Each LED needs 24 bits: 8 green, 8 red, 8 blue (yes, GRB order!)
//
// OTHER USES FOR THIS CODE:
//   - VU meter / level display (map input to number of lit LEDs)
//   - Battery gauge
//   - Progress bar
//   - Temperature indicator
//   - Binary counter display
//
// ============================================================================

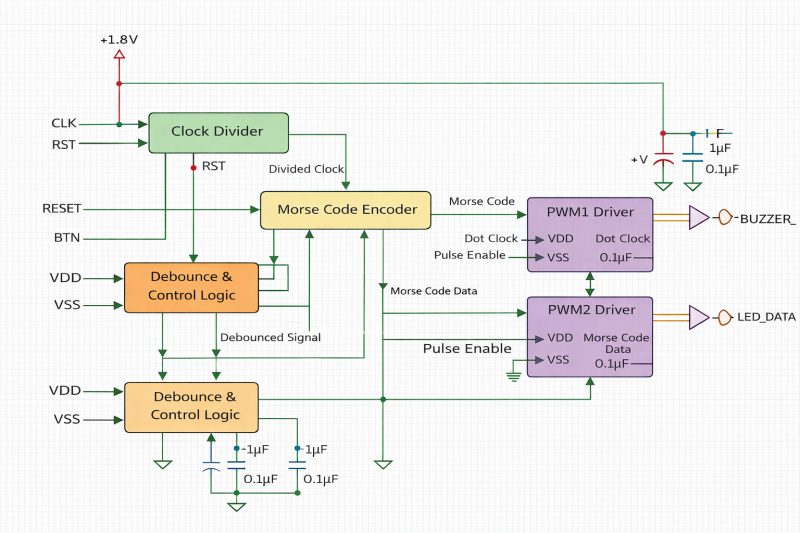

  • Schematics

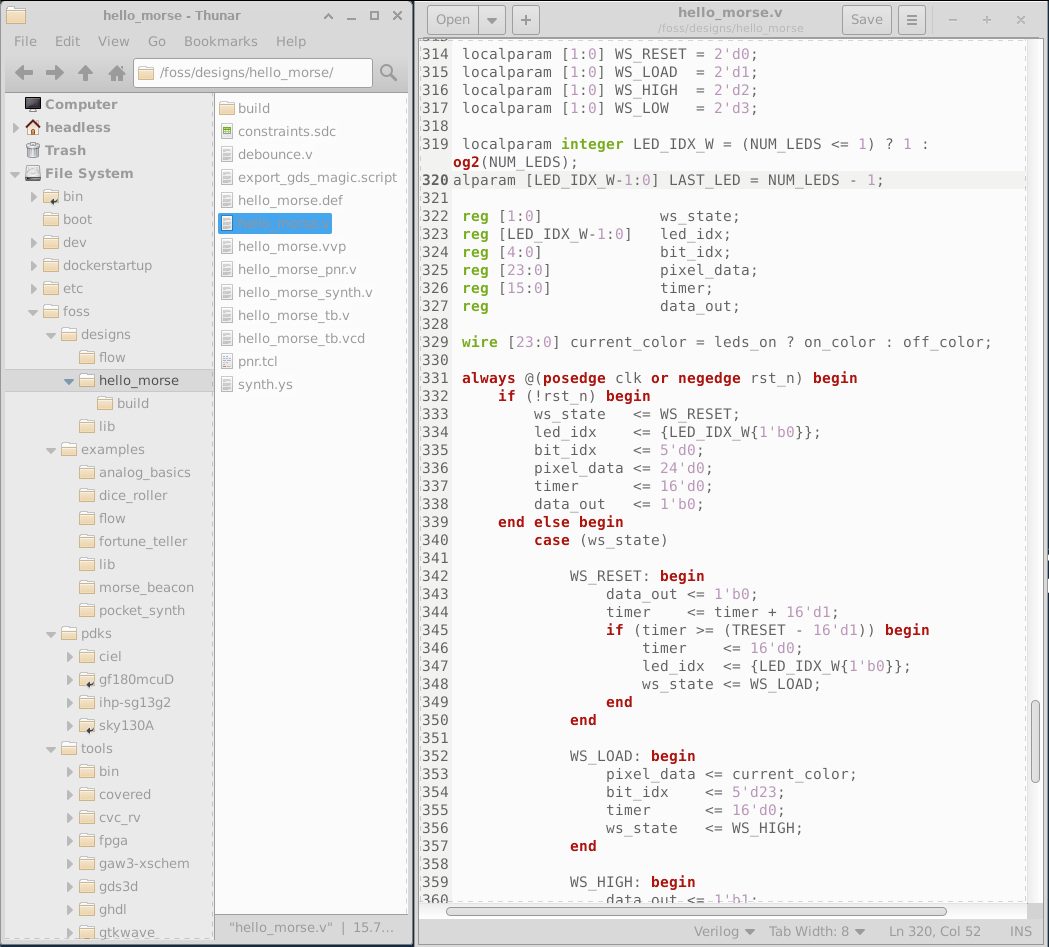

  • Verilog

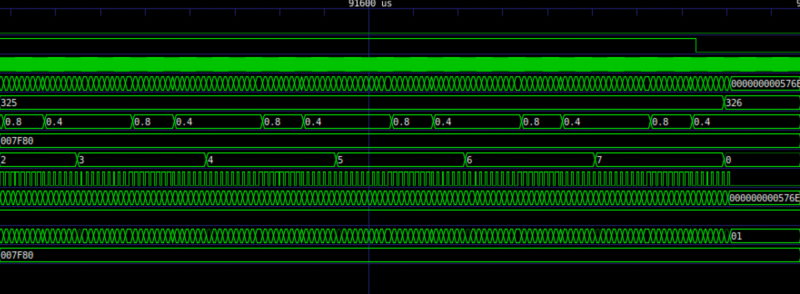

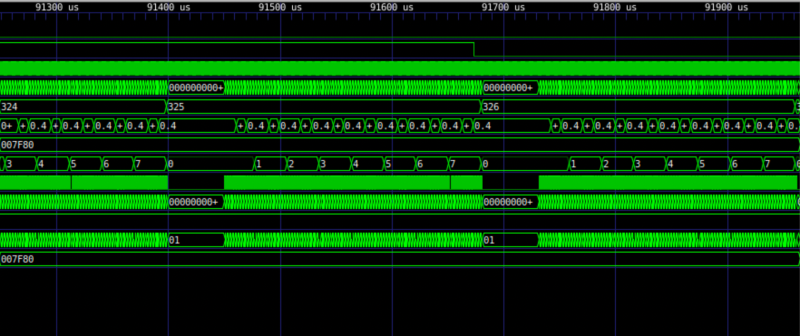

  • Simulate Waveform

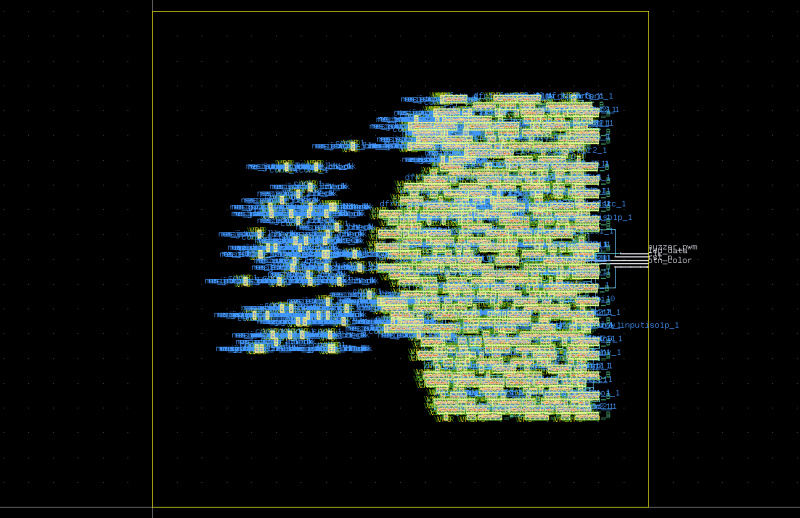

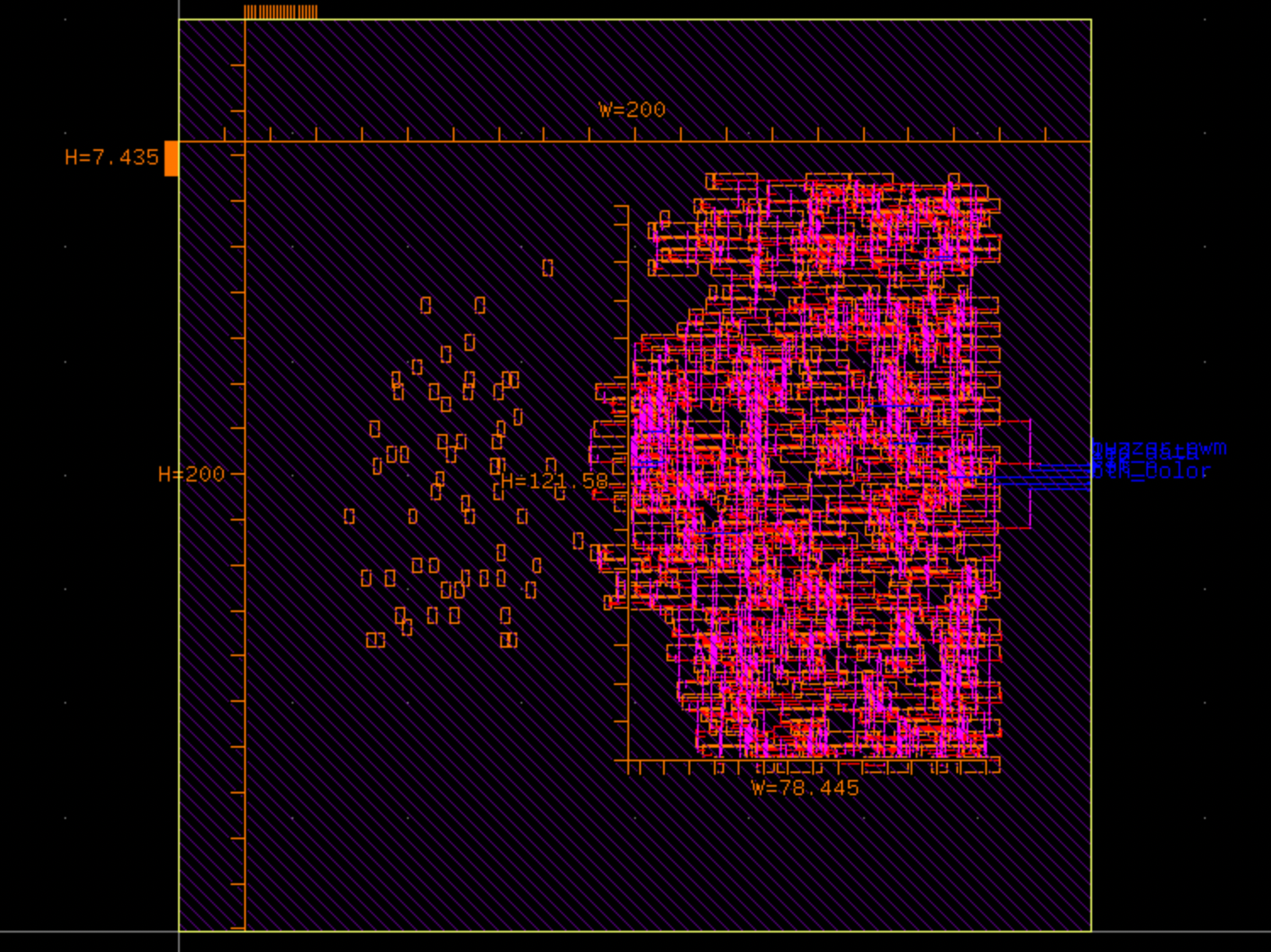

  • Synthesize Layout

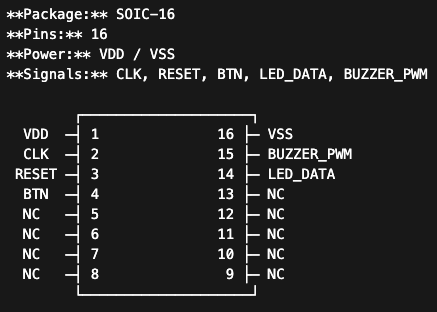

  • Pin Assignments
Pin Name Direction Description
1 VDD Power Power supply
16 VSS Power Ground
2 CLK Input System clock
3 RESET Input Active-low reset (rst_n)
4 BTN Input Button input (btn_color)
14 LED_DATA Output WS2812 LED data signal
15 BUZZER_PWM Output 600 Hz buzzer output
5–13 NC - Not connected

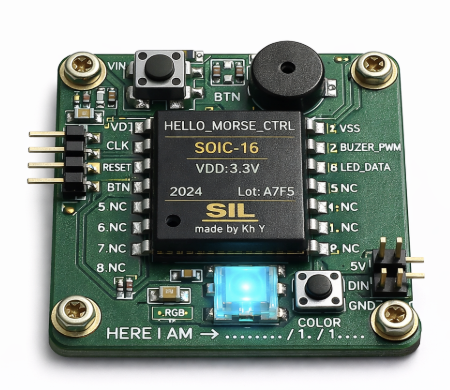

  • Morse Beacon, IC Chip “SIL” inside (Concept Image)

No Hidden Magic.
